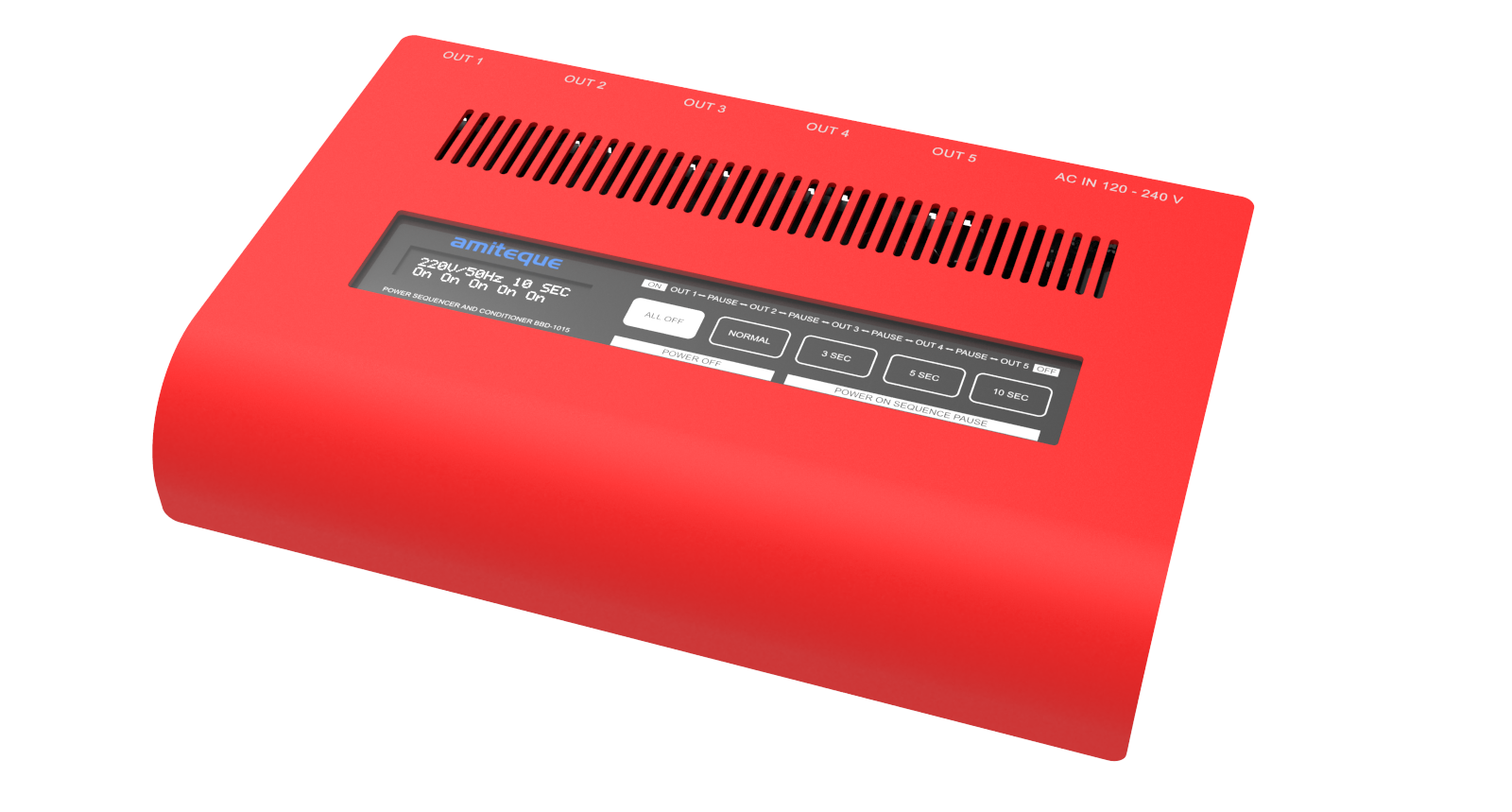

BBD-1015
Power Sequencer & Conditioner.
A five-output AC power sequencer and line conditioner for professional audio systems, combining bidirectional power sequencing, EMI filtering, line monitoring and capacitive touch control.
Controlled power. Cleaner power.
Designed for studios, sound systems and equipment racks where power-up order, shutdown order and AC line quality matter.
The BBD-1015 combines a five-output power sequencer with AC line conditioning in a single compact unit. Connected equipment can be powered on in a controlled sequence, reducing simultaneous inrush current and helping prevent unwanted transients in audio systems.
During shutdown, the sequence is automatically reversed so downstream equipment such as power amplifiers can be switched off before source and processing equipment. The unit also provides EMI filtering, AC voltage and frequency monitoring, and power-fault protection.
On in order. Off in reverse.
A simple sequence protects the signal chain from abrupt simultaneous switching and makes complete-system power control a one-touch operation.
Power ON
OUT 1 → delay → OUT 2 → delay → OUT 3 → delay → OUT 4 → delay → OUT 5.
Power OFF
OUT 5 → delay → OUT 4 → delay → OUT 3 → delay → OUT 2 → delay → OUT 1.
Normal / All Off
NORMAL performs the timed reverse shutdown using the selected 3, 5 or 10 second interval. ALL OFF immediately switches all five outputs off, bypassing the sequence for emergency shutdown.
Real-time monitoring

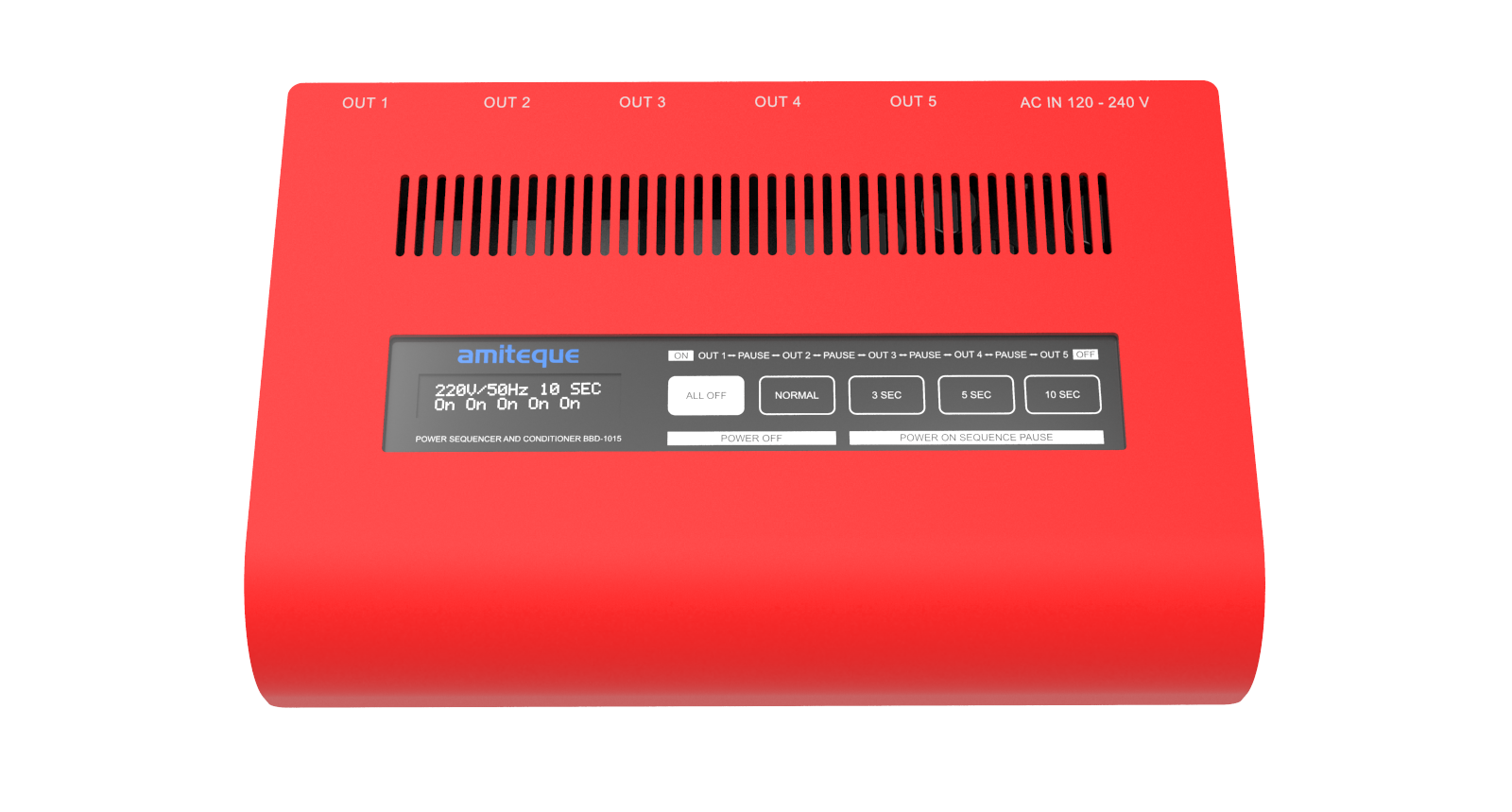

The front display shows AC line voltage, frequency, selected delay and the status of all five outputs.
Power management at a glance.
Built for complete audio systems.
Recording studios
Sequence interfaces, processors, monitors and other studio equipment from a single control point.
PA & installed sound
Power signal-processing equipment before amplifiers and reverse the order automatically during shutdown.
Equipment racks
Organize startup and shutdown of multiple rack devices while monitoring incoming AC power.
Electronic music systems
Manage synthesizers, processors, mixers and amplification in larger hardware setups.
Built for complete audio systems.
The BBD-1015 is designed to provide a single point of power control for multi-component audio installations. It is well suited to studio racks, live sound systems, installed audio and other setups where several devices should be powered in a controlled order.
By managing startup and shutdown from one front panel, the BBD-1015 simplifies daily operation and helps avoid uncontrolled simultaneous switching of connected equipment.
Documentation.
User manual and detailed BBD-1015 product documentation will be available here.
Questions about the BBD-1015?
For availability, dealer inquiries or technical questions, contact Amiteque Electronics Canada.
info@amiteque.com
